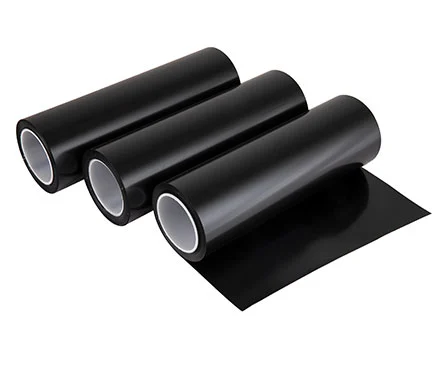

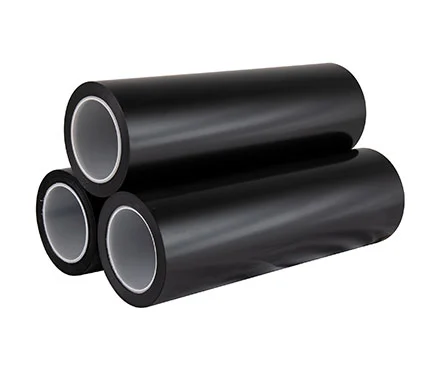

B401D/B403D Black PET Film

b401d b403d black pet film
black polyester film

B401D/B403D Black PET Film is a type of black plastic film made from polyethylene terephthalate (PET). It is strong, lightweight, and resistant to moisture, heat, and chemicals. This film is commonly used in applications such as packaging, printing, laminating, and labelling. It has a glossy finish and can be easily printed on with a variety of printing processes.

Product Performance Features

Black PET natural black, the appearance of the product is right, not transparent, not of the color. the main ones are:


  • The good black cover even color.

  • The surface is bright and smooth without losing color.

  • High temperature and stability, good performance on ink, Silicon oil, and coating.

Specifications of B401D/B403D Black PET Film


Thickness

Width

Roll Core Inner Diameter

12um~100um

Can Be Customized

Small:76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



B401D/B403D Black PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

12~20

23~49

50~100

GB/T13542.2

Mean Thickness Deviation


um

±2%

±2%±3%

Tensile Strength

MD

Mpa

MD≥150

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

TD≥170

Breaking Elongation

MD

%

60≤MD≤180

70≤MD≤180

GB/T13542.2

TD

%

60≤TD≤180

70≤TD≤180

Thermal Shrinkage 150'C / 30 min

MD

%

0≤MD≤1.5

0≤MD≤1.3

GB/T13542.2

TD

%

-0.3≤TD≤0.3

-0.3≤TD≤0.3

Transmittance


%

The WGT-S light transmittance/haze tester shows that it is impermeable

GB/T2410

The Fog Degree


%

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥40

Note:

1. MD means longitudinal tensile, TD meanstransverse tensile

2. The above are typical values instead of guar-antee value. Typical values can be adiusted accordIg to customers requirements



Applications of B401D/B403D Black PET Film


Black film is used in outer packing of R-transformer , production of voice membrane , electrical insulation andlight tight shield , electronic , electronic engineering , solar energy product , audiovisual product (such as percussion instrument ,earphones eardrum , LED , backlight industry).
