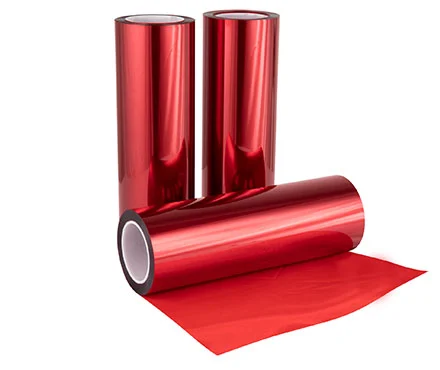

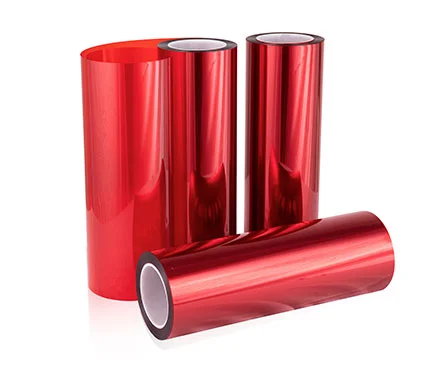

R603D Red PET Film

red transparent film
red pet film
r603d red pet film
  1. High transparency and gloss: Red PET Film has high transparency and good gloss, which can improve the product grade and add market value.

  2. Good ink adhesion: The surface of red PET film has good adhesion to various printing inks, which is suitable for various high-end printing processes.

  3. High mechanical strength: Red PET Film has good tensile strength and excellent toughness, which can meet the requirements of product processing, printing and lamination.

  4. Good chemical resistance: Red PET Film has good chemical resistance, which can resist the corrosion of some chemicals and prolong the service life of the product.

  5. High-temperature resistance: Red PET Film can withstand higher temperatures and has good thermal stability, which is beneficial to the long-term storage of products.

  6. Good dimensional stability: Red PET Film has good dimensional stability, which can maintain the accuracy of the product during processing and prolong its service life.

Specifications of R603D Red PET Film


Thickness

Width

Roll Core Inner Diameter

25um~100um

Can Be Customized

Small:76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



R603D Red PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

25

365075

100

GB/T13542.2

Mean Thickness Deviation


um

±2%

±3%

Tensile Strength

MD

Mpa

MD≥150

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

TD≥170

Breaking Elongation

MD

%

60≤MD≤180

70≤MD≤180

GB/T13542.2

TD

%

60≤TD≤180

70≤TD≤180

Thermal Shrinkage 150'C / 30 min

MD

%

0≤MD≤1.5

0≤MD≤1.3

GB/T13542.2

TD

%

-0.3≤TD≤0.3

-0.3≤TD≤0.3

Transmittance


%

47~53

33~3925~3020~26

14~20

GB/T2410

The Fog Degree


%

0.5~1.6

0.5~1.60.5~1.60.5~1.6

0.5~1.6

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥38

Note:

1. MD means longitudinal tensile, and TD means transverse tensile.

2. The above are typical values instead of guarantee values. Typical values can be adapted according to customers' requirements.



Applications of R603D Red PET Film


Suitable for bright red indoor decoration, as a base material, printing, and other applications.
