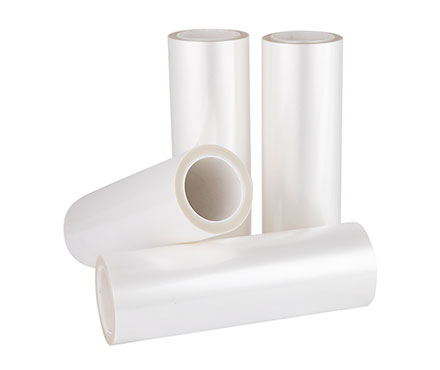

T101D Transparent PET Film

t101d transparent film

T101D is a transparent PET film with high transparency and excellent mechanical properties. It offers good chemical and corrosion resistance, as well as superior dimensional stability. This film is widely used in various applications, such as lamination, printing, and packaging.

Product Performance Features

  • Good transparency and luster.

  • Good air tightness and incense retention.

  • Good aluminum plating and prnting properties.

Specifications of T101D Transparent PET Film


Thickness

Width

Roll Core Inner Diameter

12um~100um

Can Be Customized

Small:76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



T101D Transparent PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

12~38

50~100

GB/T13542.2

Mean Thickness Deviation


um

±2%

±3%

Tensile Strength

MD

Mpa

MD≥150

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

TD≥170

Breaking Elongation

MD

%

60≤MD≤180

70≤MD≤180

GB/T13542.2

TD

%

60≤TD≤180

70≤TD≤180

Thermal Shrinkage 150'C/30 min

MD

%

0≤MD≤1.5

0≤MD≤1.3

GB/T13542.2

TD

%

-0.5≤TD≤0.3

-0.5≤TD≤0.3

Transmittance


%

84~92

85~90

GB/T2410

The Fog Degree


%

1.0~3.0

1.5~7

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥38

Note:

1. MD means longitudinal tensile, TD meanstransverse tensile

2. The above are typical values instead of guar-antee value. Typical values can be adiusted accordIg to customers requirements



Applications of T101D Transparent Film


High fog film is mainly used in electromechanical, electronic ,information and communication, food packaging, tape blackslip paper, reflective materials, electro-acoustic equipmenttape and flexible circuit board, etc .
