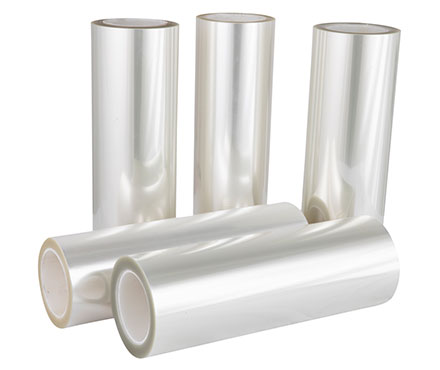

Y203D Matte PET Film is a premium grade of PET film that is used for various printing, packaging, and product labeling applications. It features a matte finish, which makes it ideal for creating labels with a smooth and professional look. The film is also tear-resistant and water-resistant, making it perfect for use in applications that require durability. Additionally, this film is also easy to work with, making it a great choice for anyone who wants to create a high-quality label quickly and easily.
Product Performance Features
In addition to the good physical and chemical properties ofordinary membranes , sub-optical membranes mainly include:
High fog.
Low gloss , matte color.
Better aluminum plating and printing performance.
Thickness | Width | Roll Core Inner Diameter |
23um~93um | Can Be Customized | Small:76mm Large: 152mm |
Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.
Project | Unit | Detection Value | Detection Method | ||||
Thickness | um | 23 | 36 | 85 | 93 | GB/T13542.2 | |
Mean Thickness Deviation | um | ±2% | ±3% | ||||
Tensile Strength | MD | Mpa | MD≥150 | MD≥150 | GB/T13542.2 | ||
TD | Mpa | TD≥170 | TD≥170 | ||||
Breaking Elongation | MD | % | 60≤MD≤180 | 70≤MD≤180 | GB/T13542.2 | ||
TD | % | 60≤TD≤180 | 70≤TD≤180 | ||||
Thermal Shrinkage 150'C/30 min | MD | % | 0≤MD≤1.5 | 0≤MD≤1.3 | GB/T13542.2 | ||
TD | % | -0.3≤TD≤0.3 | -0.3≤TD≤0.3 | ||||
Transmittance | % | 65~75 | 60~65 | 60~70 | 55~65 | GB/T2410 | |
The Fog Degree | % | 70~80 | 70~80 | 80~90 | 85~95 | ||
Wetting Tension | have | mN/m | ≥56 | GB/T14216 | |||
Non | mN/m | ≥38 | |||||
| Gloss(60°Angle) | / | 20~30 | 20~30 | 20~30 | 10~22 | GB 8807-88 | |
Note:
1. MD means longitudinal tensile, TD meanstransverse tensile.
2. The above are typical values instead of guar-antee value. Typical values can be adiusted accordIg to customers requirements.
Apply to the top-grade labels of household appliances andcomperture precision equipment , printing and packaginof indoor decoration materials and luxurious tobacco & al -cohol etc.
