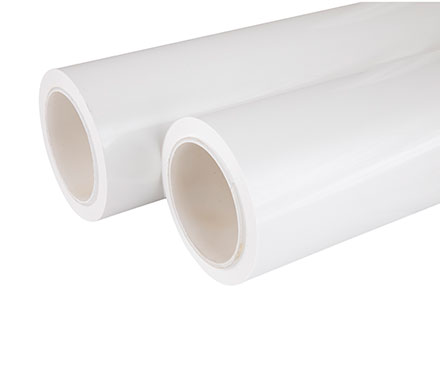

W501D White PET Film

w501d white pet film

1. PET film is a polyester film that offers excellent clarity, strength, and dimensional stability.

2. It has good chemical resistance, excellent electrical properties, and good abrasion resistance.

3. It also has a low water absorption rate and is highly resistant to UV radiation.

4. It is easy to print on, provides excellent clarity and flatness when laminated, and is an ideal material for applications that require superior optical properties.

5. PET film is also an environmentally friendly option, as it is recyclable and does not contain chlorine or other hazardous chemicals.

Product Performance Features

The white film is made of special raw materials and special processes. In addition to the good physical and chemical properties of the ordinary film, it also has:


  • Low light transmittance.

  • Good surface gloss, and an excellent shading effect.

  • It has good compound and printing properties.

Specifications of W501D White PET Film


Thickness

Width

Roll Core Inner Diameter

50um~100um

Can Be Customized

Small:76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



W501D White PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

50

75

100

GB/T13542.2

Mean Thickness Deviation


um

±3%

Tensile Strength

MD

Mpa

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

Breaking Elongation

MD

%

70≤MD≤180

GB/T13542.2

TD

%

70≤TD≤180

Thermal Shrinkage 150'C / 30 min

MD

%

0≤MD≤1.3

GB/T13542.2

TD

%

-0.3≤TD≤0.3

Transmittance


%

88~93

88~93

88~93

GB/T2410

The Fog Degree


%

18~25

18~25

18~25

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥38

Note:

1. MD means longitudinal tensile, TD meanstransverse tensile

2. The above are typical values instead of guar-antee value. Typical values can be adiusted accordIg to customers requirements



Applications of W501D White PET Film


Apply in the field of white and smooth BOPET film with highlight-proofness.
