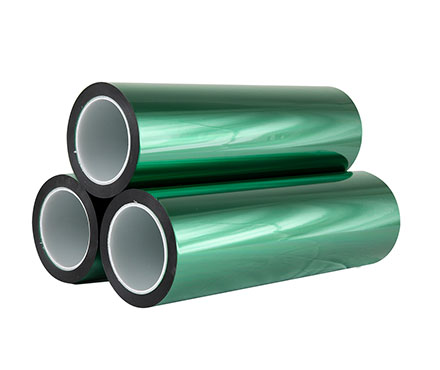

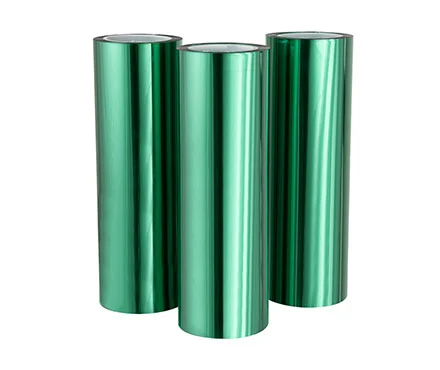

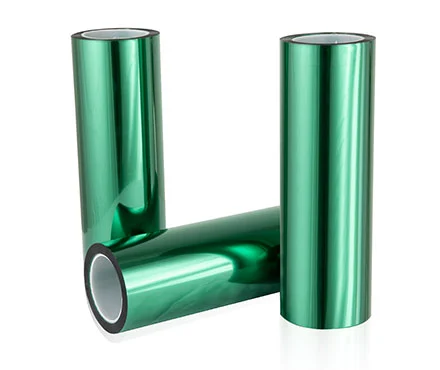

G801D green PET film is a polyethylene terephthalate (PET) film with a matte green finish. It is a thin, optically transparent film that is commonly used for a variety of applications including window graphics, labels, and other decorative applications. It has excellent dimensional stability and good mechanical properties, making it well-suited for die-cutting, laminating, and other converting operations. G801D green PET film is also highly resistant to moisture, chemicals, and abrasions, making it a great choice for outdoor applications.
Product Performance Features
The green BOPET film has good physical properties and highchemical corrosion resistance.
The color is mild without fade.
Good surface gloss, etc.
Thickness | Width | Roll Core Inner Diameter |
25um~150um | Can Be Customized | Small:76mm Large: 152mm |
Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.
Project | Unit | Detection Value | Detection Method | |||
Thickness | um | 50 | 75 | 100 | GB/T13542.2 | |
Mean Thickness Deviation | um | ±3% | ||||
Tensile Strength | MD | Mpa | MD≥150 | GB/T13542.2 | ||
TD | Mpa | TD≥170 | ||||
Breaking Elongation | MD | % | 70≤MD≤180 | GB/T13542.2 | ||
TD | % | 70≤TD≤180 | ||||
Thermal Shrinkage 150'C / 30 min | MD | % | 0≤MD≤1.3 | GB/T13542.2 | ||
TD | % | -0.3≤TD≤0.3 | ||||
Transmittance | % | 75~85 | 70~80 | 60~70 | GB/T2410 | |
The Fog Degree | % | 3~4 | 5~6 | 6~7 | ||
Wetting Tension | have | mN/m | ≥56 | GB/T14216 | ||
Non | mN/m | ≥38 | ||||
Note:
1. MD means longitudinal tensile, TD means transverse tensile
2. The above are typical values instead of guarantee values. Typical values can be adapted according to customers' requirements
The product is suitable for electronic appliances, decoration, printing compounds, and other fields.
