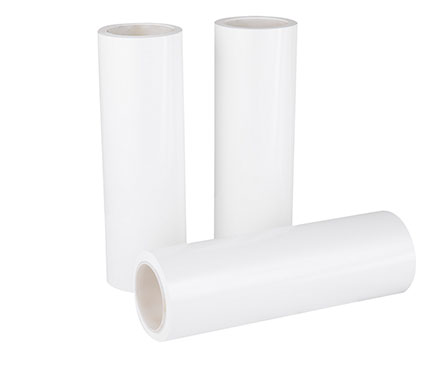

W501D-1 White PET Film

w501d 1 white pet film

W501D-1 White PET Film is a white, optically clear, polyester film that offers excellent clarity and excellent dimensional stability. It is designed for use in a variety of applications, including graphic arts, printing, lamination, and industrial applications. It is both heat and cold-resistant, making it ideal for applications that require a combination of both heat and cold. The film is also highly resistant to moisture, making it a great choice for applications where moisture and humidity are likely to be present.

Product Performance Features

The white film is made of special raw materials and special processes. In addition to the good physical and chemicalproperties of the ordinary film, it also has:


  • Low light transmittance.

  • Good surface gloss, an excellent shading effect.

  • It has good compound and printing properties.

Specifications of W501D-1 White PET Film


Thickness

Width

Roll Core Inner Diameter

12um~100um

Can Be Customized

Small:76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



W501D-1 White PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

12~25

365075

100

GB/T13542.2

Mean Thickness Deviation


um

±2%

±3%

Tensile Strength

MD

Mpa

MD≥150

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

TD≥170

Breaking Elongation

MD

%

60≤MD≤180

70≤MD≤180

GB/T13542.2

TD

%

60≤TD≤180

70≤TD≤180

Thermal Shrinkage 150'C / 30 min

MD

%

0≤MD≤1.5

0≤MD≤1.3

GB/T13542.2

TD

%

-0.3≤TD≤0.3

-0.3≤TD≤0.3

Transmittance


%

16~26

10~2010~2010~20

10~20

GB/T2410

The Fog Degree


%

87~93

87~9387~9387~93

87~93

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥38

Note:

1. MD means longitudinal tensile, TD meanstransverse tensile.

2. The above are typical values instead of guar-antee value. Typical values can be adiusted accordIg to customers requirements.



Applications of W501D-1 White PET Film


Apply in the field of white and smooth BOPET film with highlight-proofness.
