L701D Blue PET Film

l701d blue pet film
blue pet film
blue polyester pet film

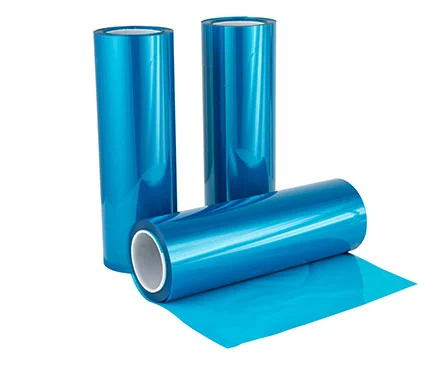

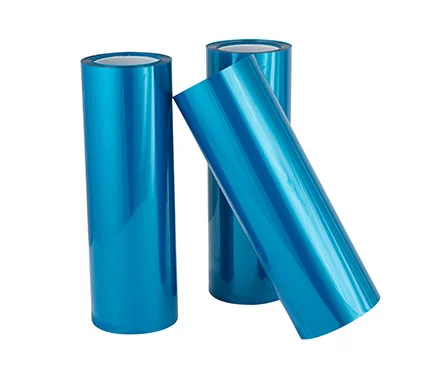

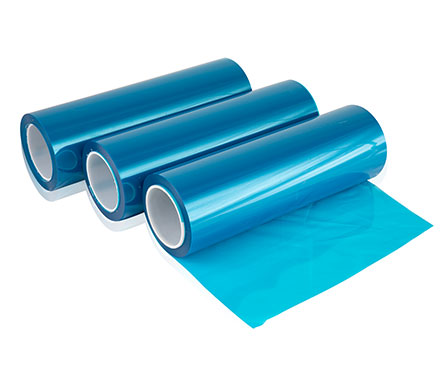

L701D Blue PET Film is a polyester film with a blue color. It is used in many industries for a variety of applications, including printing, packaging, and electrical insulation. The film has a high tensile strength, good dimensional stability, and excellent clarity. It is also resistant to chemicals and grease, making it a good choice for applications where these properties are important.

Product Performance Features

The blue film is made from special raw materials and complex processing technology. In addition to good chemical properties, there are mainly:


  • Excellent tensile strength.

  • Good surface gloss and apparent properties.

  • Excellent compound properties of coating and printing.


Specifications of L701D Blue PET Film


Thickness

Width

Roll Core Inner Diameter

12um~100um

Can Be Customized

Small:76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



L701D Blue PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

12~25

365075

100

GB/T13542.2

Mean Thickness Deviation


um

±2%

±3%

Tensile Strength

MD

Mpa

MD≥150

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

TD≥170

Breaking Elongation

MD

%

60≤MD≤180

70≤MD≤180

GB/T13542.2

TD

%

60≤TD≤180

70≤TD≤180

Thermal Shrinkage 150'C / 30 min

MD

%

0≤MD≤1.5

0≤MD≤1.3

GB/T13542.2

TD

%

-0.3≤TD≤0.3

-0.3≤TD≤0.3

Transmittance


%

74~80

70~7665~6958~62

54~60

GB/T2410

The Fog Degree


%

1~4

2~42~63~6

3~6

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥38

Note:

1. MD means longitudinal tensile, TD meanstransverse tensile.

2. The above are typical values instead of guaranteed value. Typical values can be adapted according to customers requirements.



Applications of L701D Blue PET Film


Blue film is base material applied in the decoration, electronic identification, and printing, etc.
