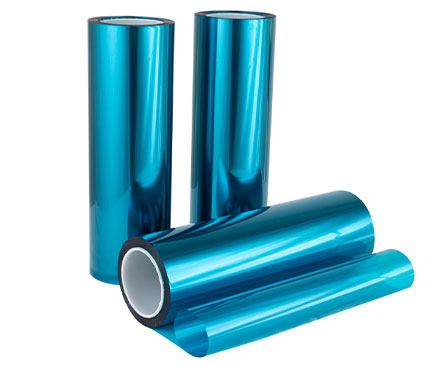

L702D Blue PET Film

l702d blue pet film
  1. High transparency.

  2. High gloss.

  3. Excellent dimensional stability.

  4. Good chemical resistance.

  5. Good electrical properties.

  6. Good heat resistance.

  7. High mechanical strength.

Product Performance Features

Blue film is made from special raw materials and complex processing technology. In addition to good chemicalproperties , there are mainly:


  • Excellent tensile strength.

  • Good surface gloss and apparent properties.

  • Excellent compound properties of coating and printing.

Specifications of L702D Blue PET Film


Thickness

Width

Roll Core Inner Diameter

50um~75um

Can Be Customized

Small:76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



L702D Blue PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

50

75

GB/T13542.2

Mean Thickness Deviation


um

±3%

Tensile Strength

MD

Mpa

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

Breaking Elongation

MD

%

70≤MD≤180

GB/T13542.2

TD

%

70≤TD≤180

Thermal Shrinkage 150'C / 30 min

MD

%

0≤MD≤1.3

GB/T13542.2

TD

%

-0.3≤TD≤0.3

Transmittance


%

58~68

55~65

GB/T2410

The Fog Degree


%

3~8

3~1

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥38

Note:

1. MD means longitudinal tensile, TD meanstransverse tensile

2. The above are typical values instead of guar-antee value. Typical values can be adapted according to customers requirements



Applications of L702D Blue PET Film


Suitable for blue as the base material decoration electronicidentification , printing and other fields.
