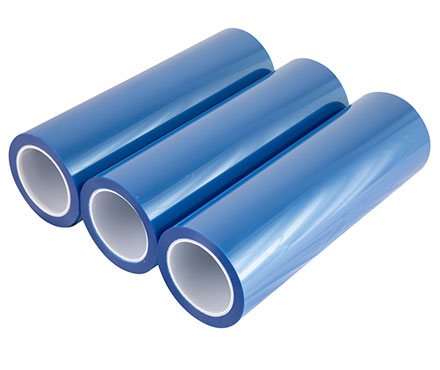

L705D Blue PET Film

l705d blue pet film

Blue PET Film is a kind of chemical film, which is widely used in the chemical, medical and food industries. It has the advantages of excellent chemical stability, high-temperature resistance, electrical insulation, good dimensional stability, and no hygroscopicity. It is widely used in chemical, medical, food, and other fields.

Product Performance Features

The blue film is made from special raw materials and complex processing technology. In addition to good chemical properties, there are mainly:


  • Excellent tensile strength.

  • Good surface gloss and apparent properties.

  • Excellent compound properties of coating and printing.


Specifications of L705D Blue PET Film


Thickness

Width

Roll Core Inner Diameter

12um~100um

Can Be Customized

Small: 76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



L705D Blue PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

25

365075

100

GB/T13542.2

Mean Thickness Deviation


um

±2%

±3%

Tensile Strength

MD

Mpa

MD≥150

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

TD≥170

Breaking Elongation

MD

%

60≤MD≤180

70≤MD≤180

GB/T13542.2

TD

%

60≤TD≤180

70≤TD≤180

Thermal Shrinkage 150'C / 30 min

MD

%

0≤MD≤1.5

0≤MD≤1.3

GB/T13542.2

TD

%

-0.3≤TD≤0.3

-0.3≤TD≤0.3

Transmittance


%

80~86

80~8678~8576~82

72~78

GB/T2410

The Fog Degree


%

1~2

1~21.5~31.5~3

2~4

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥38

Note:

1. MD means longitudinal tensile, TD means transverse tensile.

2. The above are typical values instead of guar-antee values. Typical values can be adapted according to customers' requirements.



Applications of L705D Blue PET Film


The blue film is base material apply in the decoration , electronic identification and printing, etc.
