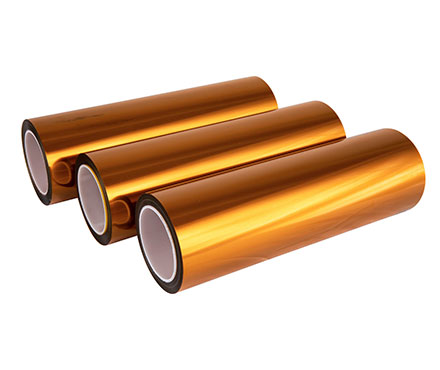

YE901D Yellow PET Film

ye901d yellow pet film

YE901D Yellow PET Film is a kind of clear, transparent, colorless, and odorless plastic film. It is widely used in food packaging, pharmaceutical packaging, medical packaging and other fields. It has excellent transparency, low moisture absorption, high strength, good dimensional stability, and good chemical resistance. It is also non-toxic and environmentally friendly. It is an ideal choice for food, medical and other industries.

Specifications of YE901D Yellow PET Film


Thickness

Width

Roll Core Inner Diameter

25um~75um

Can Be Customized

Small:76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



YE901D Yellow PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

25

3650

75

GB/T13542.2

Mean Thickness Deviation


um

±2%

±3%

Tensile Strength

MD

Mpa

MD≥150

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

TD≥170

Breaking Elongation

MD

%

60≤MD≤180

70≤MD≤180

GB/T13542.2

TD

%

60≤TD≤180

70≤TD≤180

Thermal Shrinkage 150'C/30 min

MD

%

0≤MD≤1.5

0≤MD≤1.3

GB/T13542.2

TD

%

-0.3≤TD≤0.3

-0.3≤TD≤0.3

Transmittance


%

62~68

58~6652~60

47~55

GB/T2410

The Fog Degree


%

3~8

1~51~5

1~3

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥38

Note:

1. MD means longitudinal tensile, and TD means transverse tensile.

2. The above are typical values instead of guarantee values. Typical values can be adapted according to customers' requirements.



Applications of YE901D Yellow PET Film


Widely used in electronics, electrical insulation, tape, industrial film, photosensitivity and printing decoration, and other industries.
