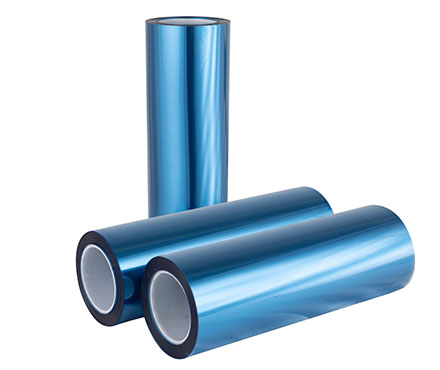

L706D Blue PET Film

l706d blue pet film

L706D blue PET film is a type of polyester film that is characterized by its excellent optical clarity, high strength, and dimensional stability. It is also resistant to most chemicals, oils, and solvents, as well as temperature extremes. This makes it an ideal choice for a variety of industrial and commercial applications, such as light diffusion, packaging, printing, and laminating.

Product Performance Features

Blue film is made from special raw materials and complex processing technology. In addition to good chemical properties, there are mainly:


  • Excellent tensile strength.

  • Good surface gloss and apparent properties.

  • Excellent compound properties of coating and printing.

Specifications of L706D Blue PET Film


Thickness

Width

Roll Core Inner Diameter

12um~100um

Can Be Customized

Small:76mm  Large: 152mm

Note: Can be customized, common width is 1005mm/1035mm/1050mm/1080mm/1095mm, etc.



L706D Blue PET Film Typical Physical Performance


Project


Unit

Detection Value

Detection Method

Thickness


um

25

5075

100

GB/T13542.2

Mean Thickness Deviation


um

±2%

±3%

Tensile Strength

MD

Mpa

MD≥150

MD≥150

GB/T13542.2

TD

Mpa

TD≥170

TD≥170

Breaking Elongation

MD

%

60≤MD≤180

70≤MD≤180

GB/T13542.2

TD

%

60≤TD≤180

70≤TD≤180

Thermal Shrinkage 150'C/30 min

MD

%

0≤MD≤1.5

0≤MD≤1.3

GB/T13542.2

TD

%

-0.3≤TD≤0.3

-0.3≤TD≤0.3

Transmittance


%

68~78

58~6852~62

46~56

GB/T2410

The Fog Degree


%

4~10

8~1510~16

12~20

Wetting Tension

have

mN/m

≥56

GB/T14216

Non

mN/m

≥38

Note:

1. MD means longitudinal tensile, TD means transverse tensile.

2. The above are typical values instead of guar-antee values. Typical values can be adapted according to customers' requirements.



Applications of L706D Blue PET Film


Blue film is base material applied in decoration, electronic identification, and printing, etc.
